Brick Inlay FormLiners
The Form Brick FormLiner (Form Brick Liners) system combines the lasting beauty and durability of traditional brick with all the benefits and efficiencies of precast concrete. Form Brick Liners is considerably faster than traditional brickwork, allowing quick enclosure and removing the brick façade from the critical path. Form Brick Liners is prefabricated offsite to allow faster construction times onsite – saving time and money.
Form Brick Liners is available in multiple brick sizes; Australian, European, imported bricks and is customizable to suit your project.
With limitless options when it comes to the range of brick tiles on offer and the ways in which they can be applied, Form Brick Liners enables the creation of truly original buildings.
Architectural Formliners is form liners ranges patented and made by Form Brick, specializing in the design and manufacture of high-quality polyurethan formliners. Our innovative product range empowers architects to achieve distinctive, beautifully textured finishes on precast concrete panels across diverse applications.
We offer comprehensive design consultation and support throughout the process, helping clients identify the best solutions aligned with their timelines, budgets, and resources to meet any structural and aesthetic vision.
Solutions for Architects
Our advanced polyurethan formliners, brick inlay system brings architectural brick facade concepts to life. With strong expertise and cutting-edge technology, we translate design integrity into efficient construction outcomes - whether for large-scale repetitive panels or bespoke cast-in-place features.
Solutions for Pre-casters
From precision-engineered formliners to our signature brick inlay system, our diverse textures and profiles deliver precision and time-saving benefits while enhancing the visual impact of precast concrete panels.
Why Form Brick FormLiners

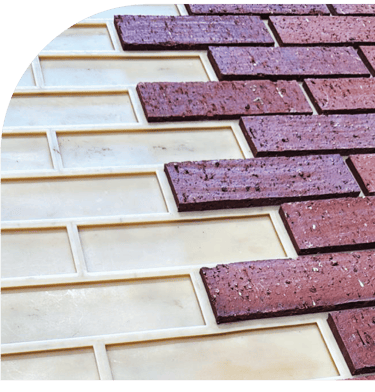

Our innovative Brick inlay formliners a patented multiple liner technology to embed thin brick tiles into precast concrete and deliver distinctive, richly textured concrete surfaces - ideal for architects and precast manufacturers seeking elevated design impact. Brick Inlay stands as a trusted façade solution, engineered for both single-use and repeat applications, that offers a multitude of advantages, including:
Higher production efficiencies
Faster cycle times
Multiple brick sizing
Faster construction
Lower labour cost
Quicker clean up
Better overall finish
More realistic mortar joints
Greater design flexibility
Talk about your projects with Brick Inlay?
Charlie Gubbins
0409 955 795
Or
Form Liners
This form liner includes only the brick bed joints, therefore allowing the concrete pre-caster to vary the size of the perp joints, just as a brick layer does, accommodating the variable length of bricks.

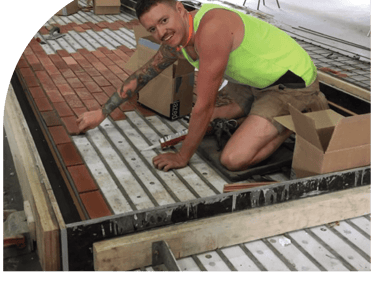

The bricks take a little longer to lay out in this system. This time spent is rewarded with a labour saving at the time of cleaning the concrete panel.
When the brick is undersized and the perp joint isn’t adjustable then the brick end is replaced by an unsightly concrete piece (Photographed brick fault).
Standard Form Liner

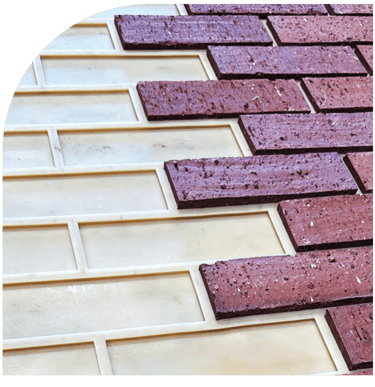

The cost of labour and the urgency of panel deliveries has prompted Form Brick to offer a brick inlay system with fixed perp joints to enable faster placement of bricks.
The Bricko system has many other benefits over its competition.
Bricko is bendable to reduce the tension when stripping it from concrete panels.
Bricko has no timber substrate, therefore is not prone to moisture expansion.
Bricko can be cut with a knife or scissors and rejoined again with ease.
Bricko is dimensionally stable and easily aligned in a form bed.
Bricko is light (7.6kgs / piece)Bricko is resilient to damage when stored and moved around the factory.
Single Use Formliner
With a constant requirement to fulfill Architectural features, otherwise not achievable, Form Brick has introduced a single use form liner for 3 dimensional structures where demoulding becomes an additional challenge.
Single use form liner may be fixed to any surface in the mould completing the brick and mortar joint detail to all adjacent faces when 3 dimensional brick inlay is on the table.
With Form Bricks single use form liner, bespoke brick work has become the norm, not the exception.
brick inlay , brick inlay systems , brick inlay solutions , rchitectual brick inlay, precast brick inlay , pre-cast concrete brick inlay , precast concrete brick inlay , brick inlay projects, brick inlay technology , brick inlay panels , commercial brick inlay , custom brick inlay , cost of brick inlay , brick inlay construction , brick inlay efficiency , brick inlay sydney, brick inlay melbourne , brick inlay geelong , brick inlay toowoomba , brick inlay adelaide , brick inlay wollongong , brick inlay gold coast , brick inlay newcastle , brick inlay sunshine coast , brick inlay perth , brick inlay brisbane , brick inlay canberra , brick inlay tasmania , brick tiles , brick slips , brick snaps , brick facings , thin bricks , brick facade systems , inlay brick facade systems , brick tile facades , inlay brick tile facades , pre-cast concrete brick tiles , custom brick facade , custom inlay brick facade , precast brick walls , brick cutting , brick cutting service , architectural brick facades , architectural inlay brick facades , form brick

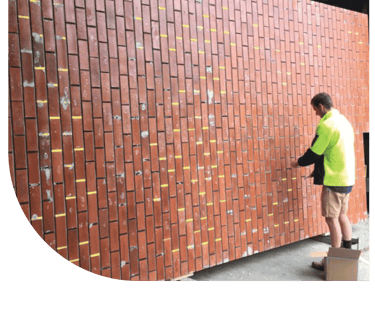

Additionally Form Brick’s ‘original’ form liner system enables every brick wall to have a hand made appearance, with the perp joints randomly imperfect by up to 6mm.
This method of brick inlay resembles the work of brick layers, differentiating a brick inlay wall from a tiled wall.
